Solar Panel Framing Machine with Punching Function & OTZK-A Full Automatic Framing Machine
Professional Framing Solutions for Solar Panel Production Lines
Ooitech provides two advanced solar panel framing machine solutions designed to meet different production requirements in solar module manufacturing. The first model is a Hydraulic Punching Framing Machine that features automatic corner assembly, automatic edge assembly, and a universal punch mold compatible with 35mm and 50mm aluminum frame specifications. The second model is the OTZK-A Full Automatic Framing Machine with Auto Dispensing Glue, which integrates online gluing and framing functions into a single automated workflow for high-efficiency production.
Both machines are engineered for precision, reliability, and ease of operation, making them ideal choices for solar panel manufacturers producing MBB, PERC, TOPCon, IBC, ABC, HPBC, shingled, and flexible solar modules. Whether you need manual, semi-automatic, or fully automatic framing capability, Ooitech has the right solution for your solar panel production line.
Technical Parameters
Hydraulic Punching Framing Machine Specifications
| Parameter | Specification |
|---|---|
| Max Framing Size | 2000 x 1100 x 50mm |
| Min Framing Size | 840 x 840 x 35mm |
| Framing Accuracy | +/-1mm |
| Diagonal Size Difference | +/-1.5mm |
| Punching Type | Hydraulic |
| Angle Deviation | 0.5 degrees |
| Working Air Pressure | 0.8 MPa |
| Working Type | Right angle positioning, extrusion |
| Machine Dimensions | 3160 x 1760 x 920mm |
| Operation Type | Manual or Automatic |
| Working Voltage | 380V |
| Weight | 1250 KG |
OTZK-A Full Automatic Framing Machine Specifications
| Parameter | Specification |
|---|---|
| Model | OTZK-A |
| Machine Function | Online gluing and framing |
| Max Panel Size | 2000 x 1000 x (30-50mm) |
| Min Panel Size | 1580 x 808 x (30-50mm) |
| Machine Efficiency | Less than or equal to 35 seconds per panel |
| Working Voltage | 220V |
| Working Table Height | 950 +/- 50mm |
| Air Pressure | 0.6-0.7 MPa |
| Air Consumption | 300 L/min |
| Machine Dimensions | 3000 x 2200 x 950mm |
| Weight | 3000 KG |
| Power Supply | 220VAC +/- 10% |
| Applicable Panel Type | Glass downward panel with designated sealant/tape |
| Technical Process | Automatic framing with circulating input and output |
OTZK-A Key Electrical Components
| Component | Brand / Model |
|---|---|
| Air-operated Solenoid Valve | AirTAC |
| Photoelectric Sensor | BeDook |
| Electric Element | CHINT |
| AC Contactor | CHINT |
| Thermal Relay | CHINT |
| Transmission Motor | China Brand |
| Touch Screen | China Brand |
| Driver Model | ASD-A2-2023-L |
| Motor Model | ECMA-C11020RS |
| PLC Model | DVP80EH00T3 |
| Electrical Brand | CHINT / DELTA |
Technical Advantages
Hydraulic Punching Framing Machine Advantages
- Automatic Corner and Edge Assembly: Fully automated group angle and group edge functions ensure consistent and precise framing results with minimal operator intervention.
- Rapid Size Adjustment: Change panel size within 5 minutes, covering a wide range from 840 x 840mm to 1100 x 2000mm, significantly reducing downtime during production changeovers.

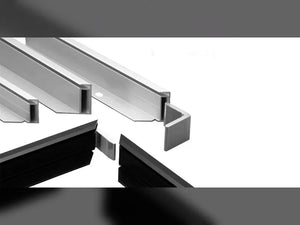

- Universal Punch Mold: Compatible with both 35mm and 50mm aluminum frame specifications out of the box, with custom mold options available for special requirements.
- Hydraulic Punching System: Powerful hydraulic punching delivers clean, accurate frame holes with consistent quality across high-volume production runs.
- Premium Brand Components: Equipped with famous brand hydraulic devices and accessories to ensure best-in-class performance, durability, and long service life.
- Safety-First Electrical Design: Control panel is separated from the main machine body, with light current isolated from strong current for enhanced operator safety.
- Easy Hydraulic Pressure Adjustment: Intuitive hydraulic pressure controls allow operators to fine-tune settings quickly for different frame materials and thicknesses.
- Double Locking Structure Design: Patented double locking mechanism maintains precision alignment throughout extended production cycles, ensuring consistent framing quality.
- High Precision Output: Achieves framing accuracy of +/-1mm and diagonal size difference of +/-1.5mm, meeting strict solar panel manufacturing quality standards.
OTZK-A Full Automatic Framing Machine Advantages
- Integrated Gluing and Framing: Combines automatic glue dispensing and framing in one machine, eliminating the need for separate equipment and streamlining the production workflow.
- High Production Efficiency: Completes one panel in 35 seconds or less, enabling high-throughput solar module manufacturing.
- Automated Circulating Process: Panels are automatically fed in and out in a circulating order after framing, supporting seamless integration with upstream and downstream production line equipment.
- Reliable Electrical System: Utilizes trusted brands including CHINT and DELTA for electrical components, with independent operating box for convenient control.
- Servo Drive Precision: DELTA servo driver (ASD-A2-2023-L) paired with ECMA-C11020RS motor delivers accurate and repeatable motion control.
- Advanced PLC Control: DVP80EH00T3 PLC provides intelligent process management with programmable parameters for different panel sizes and frame types.
- Comprehensive Safety Protection: Full safety precautions implemented across the mainframe, accessories, and all ancillary facilities to protect operators and equipment.
Product Applications
Solar Panel Manufacturing Applications
Ooitech solar panel framing machines are widely used across diverse solar module production scenarios:
- Crystalline Silicon Solar Panels: Ideal for framing monocrystalline and polycrystalline silicon solar modules of various cell formats including G1, M6, M10, and M12 wafer sizes.
- MBB Solar Panels: Fully compatible with multi-busbar (MBB) solar panel production lines, supporting both half-cell and full-cell module configurations.
- PERC Solar Modules: Precision framing for Passivated Emitter and Rear Cell (PERC) technology modules with consistent quality output.
- TOPCon Solar Modules: Designed to handle Tunnel Oxide Passivated Contact (TOPCon) solar panels with the accuracy required for next-generation cell technology.
- IBC / ABC / HPBC Modules: Suitable for advanced cell architectures including Interdigitated Back Contact (IBC), All Back Contact (ABC), and Hybrid Passivated Back Contact (HPBC) solar panels.
- Shingled Solar Panels: Supports framing of shingled module designs that require precise alignment and gentle handling.
- Flexible Solar Panels: Adaptable to flexible solar module production with appropriate frame specifications.
- Bifacial Solar Modules: Compatible with glass-glass and glass-backsheet bifacial module framing requirements.
- Small to Large Format Panels: The hydraulic punching model covers sizes from 840 x 840mm up to 2000 x 1100mm, while the OTZK-A handles panels from 1580 x 808mm to 2000 x 1000mm, accommodating both residential and commercial solar panel formats.
- New Solar Panel Factory Setup: Both framing machines can be integrated as key components in complete solar panel production lines ranging from 5MW to 1GW capacity.
- Existing Production Line Upgrades: Easily integrated into existing solar module production lines to replace outdated framing equipment and improve production efficiency.
