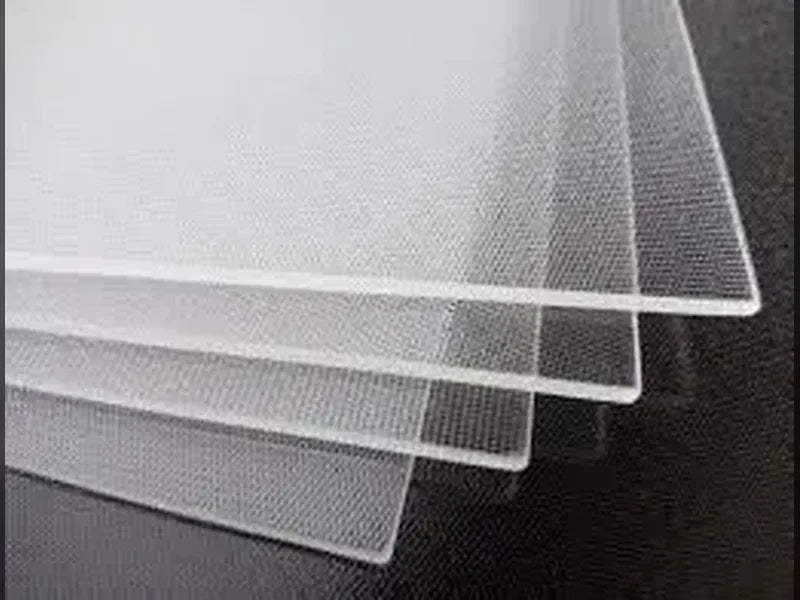

Low-Iron Tempered Solar Glass: 93.5% with AR Coating
Solar tempered glass for PV modules: ultra-clear low-iron glass with anti-reflective coating, reaching 91.5%+ light transmittance in G1/M6/M10/M12 sizes.
Quick answer: Solar tempered glass is the ultra-clear, low-iron glass that forms the front cover of a photovoltaic module. Ordinary window glass absorbs too much light and breaks under thermal load, so module glass is low-iron, tempered and coated on the inner face with an anti-reflective layer. That combination reaches 94.5% light transmittance against roughly 91.5% for uncoated low-iron glass. Standard thicknesses are 3.2 mm, 2.5 mm and 2.0 mm, chosen against module weight and mechanical load rating. The glass must survive IEC 61215 mechanical load and hail tests, which is why it is thermally tempered rather than annealed. Tempering puts the outer surfaces into compression so an impact produces small blunt fragments instead of sharp shards, and it also raises the bending strength the module relies on under snow and wind load. Ooitech supplies AR-coated low-iron solar glass cut to G1, M6, M10 and M12 module formats, from 5 MW pilot lines through to 1 GW production.
PV Module Manufacturing · by Jerry, Ooitech
Product Introduction
Solar glass is a specialized type of ultra-clear, low-iron tempered glass engineered specifically for photovoltaic modules, representing a critical component in modern solar panel manufacturing. Unlike ordinary window glass, this advanced material serves as the outermost protective layer of PV modules while functioning as the primary gateway for sunlight transmission. At Ooitech, we provide comprehensive solar panel production line equipment including glass processing machinery that ensures the highest quality solar glass manufacturing standards. Our solutions support the production of solar glass for various module types including G1, M6, M10, M12, MBB, PERC, TOPCon, IBC, ABC, HPBC, shingled, flexible, and thin-film modules.
The quality of solar glass directly determines both the power generation efficiency and the operational lifespan of photovoltaic modules, making it an essential focus in our complete solar panel production line solutions. Our glass loading machines and processing equipment are designed to handle solar glass with precision, ensuring optimal performance throughout the 25+ year lifespan of solar installations.
Technical Parameters
| Parameter | Specification | Industry Standard |
|---|---|---|
| Glass Type | Ultra-Clear, Low-Iron Tempered Glass | Photovoltaic Grade |
| Light Transmittance | >91.5% (without AR coating) | IEC 61215 Compliant |
| Light Transmittance with AR | 93.5% - 94.5% | Enhanced Performance |
| Iron Oxide (Fe₂O₃) Content | <0.015% | Ultra-Low Iron |
| Thickness Options | 2.0mm, 2.5mm, 3.2mm | Module-Specific |
| Mechanical Strength | 3-5x stronger than annealed glass | Tempered Standard |
| Impact Resistance | Withstands hailstones up to 25mm @ 23m/s | IEC 61730 Certified |
| Temperature Range | -40°C to +85°C | Extreme Weather Resistant |
| UV Resistance | >25 years without degradation | Long-term Stability |
| Surface Options | Smooth, Matte, Pyramidal Texture | Application-Specific |
| AR Coating Thickness | 100-150nm | Nano-scale Precision |
| Certification Standards | IEC 61215, IEC 61730 | International Compliance |
Technical Advantages
Ultra-Clear Low-Iron Technology
- Crystal Clear Appearance: Significantly reduced iron content eliminates the greenish tint found in standard glass, maximizing light transmission
- Enhanced Efficiency: Direct correlation between light transmittance and module power output, with every 1% increase in transmittance yielding proportional power gains
- Optimized Spectrum Transmission: Minimal absorption across the entire visible light spectrum ensures maximum photon delivery to solar cells
Advanced Tempering Process
- Superior Mechanical Strength: 3-5 times stronger than annealed glass, providing exceptional resistance to mechanical loads
- Safety Performance: Breaks into small, blunt granules rather than sharp shards, ensuring safety during handling and in case of breakage
- Thermal Stability: Enhanced resistance to thermal stress and rapid temperature changes
Anti-Reflective Coating Innovation
- Power Output Boost: 2-3% additional light transmittance directly translates to increased module power generation
- Nano-scale Precision: Silica-based porous film engineered for optimal light interference patterns
- Durability: Weather-resistant coating maintains performance throughout the module's lifetime
Surface Texturing Benefits
- Glare Reduction: Minimizes light reflection and environmental glare
- Light Path Extension: Increases effective light absorption through refraction, particularly beneficial during low sun angles
- Enhanced Morning/Evening Performance: Optimizes power generation during off-peak sunlight hours
Product Applications
The optical reasoning behind the textured outer face and the embossed inner pattern, including how each is formed, is explained in why solar panel glass is textured.
Monofacial Solar Modules
Standard application using 3.2mm tempered solar glass as the front protective layer, providing optimal balance between protection and light transmission. Ooitech's production lines are equipped to handle various glass thicknesses for different module designs.
Bifacial Solar Modules
Utilizing thinner 2.0mm or 2.5mm glass on both sides to maximize light collection while minimizing weight. Our glass loading and handling equipment is specifically designed for delicate thin glass processing.
Large-Format Modules (M10, M12)
Specialized glass solutions for next-generation large wafer formats, requiring enhanced structural support and uniform stress distribution. Our equipment ensures precise handling of larger glass sheets.
Specialized Module Types
- TOPCon & HJT Modules: Ultra-high transmittance glass for maximum efficiency
- Shingled Modules: Precision-cut glass for innovative module designs
- Flexible Modules: Ultra-thin glass solutions for lightweight applications
- Building-Integrated PV (BIPV): Customized glass with aesthetic considerations
- Thin-Film Modules: Specialized coating compatibility for CdTe and CIGS technologies
Extreme Environment Applications
- Desert Installations: Sand-resistant surface treatments
- Coastal Projects: Enhanced corrosion resistance
- High-Altitude Sites: UV-resistant coatings for intense solar radiation
- Agricultural PV: Special light spectrum optimization for agrivoltaics
