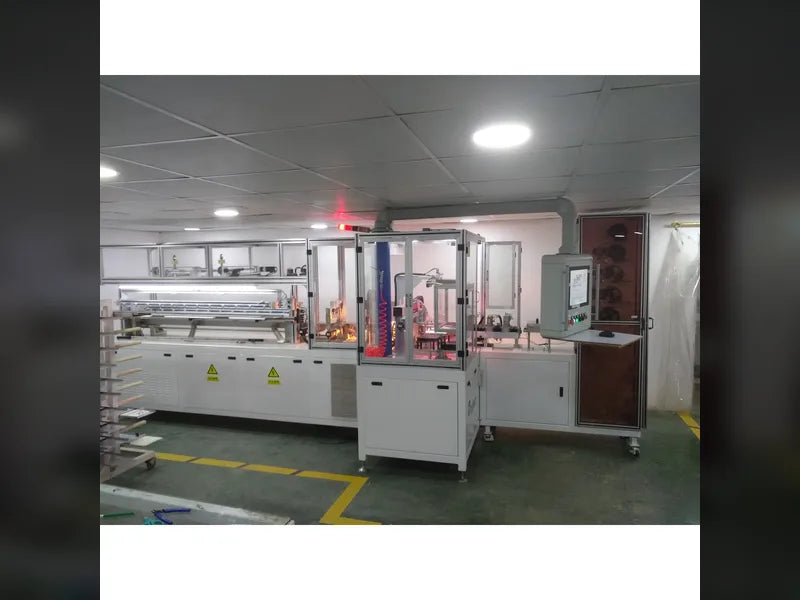

Product Introduction
The Ooitech 5MW Semi-Automatic Solar Panel Production Line represents the perfect entry point for entrepreneurs and small to medium investors looking to establish a foothold in the rapidly growing solar manufacturing industry. This carefully engineered production solution strikes an optimal balance between initial investment costs and operational efficiency, making solar panel manufacturing accessible to a broader range of businesses.
Designed with versatility at its core, this production line seamlessly accommodates the latest cell technologies including M6 (166mm), M10 (182mm), and M12 (210mm) formats, enabling manufacturers to produce a comprehensive range of solar panels from 100W to 720W. Whether targeting residential rooftop installations, commercial building projects, or small-scale solar farms, this flexible system adapts to diverse market demands.
The integration of advanced Multi-Busbar (MBB) technology ensures superior electrical performance and enhanced module reliability, while the semi-automatic configuration maintains cost-effectiveness without compromising product quality. With successful installations across 20+ countries in Southeast Asia, Africa, and the Middle East, Ooitech's proven track record demonstrates the line's adaptability to various manufacturing environments and market conditions.
Technical Parameters
Production Capacity & Infrastructure
| Parameter | Specification | Details |
|---|---|---|
| Annual Capacity | 5 MW | Single shift operation, expandable to multiple shifts |
| Factory Space Required | 500 m² | Dedicated production area |
| Warehouse Area | 750 m² | 1.5× machinery area for material storage |
| Total Power Consumption | >45 KW | Three-phase industrial power |
| Air Compressor Flow | 0.6-0.9 m³/min | 900 L/min capacity |
| Air Pressure | 0.8-1.0 MPa | 8-10 Kg/cm² operating pressure |
| Water Pump | 0.55-1.0 KW | 220V/50-60Hz with 120-200L tank |
Module Specifications
| Parameter | Specification | Compatibility |
|---|---|---|
| Cell Technologies | PERC/TOPCon/HJT | Mono-crystalline silicon |
| Cell Sizes Supported | M6/M10/M12 | 166mm/182mm/210mm |
| Module Power Range | 100W-720W | Customizable configurations |
| Process Support | Half-cell/Multi-busbar | Bifacial module capable |
| Investment Range | USD 200,000-250,000 | Complete line setup |
| ROI Period | 2-3 years | Based on single shift operation |
Main Equipment Configuration
| Equipment | Model/Specification | Quantity | Power Requirements |
|---|---|---|---|
| Automatic Stringer | SS-1500 | 1 unit | 1,100 cells/hour capacity |
| Laser Cutter | OLS-20A | 1 unit | Half/third-cell cutting |
| Laminator | OTCY-2658 | 1 unit | 2600×5800mm, Siemens PLC |
| EL Tester | 12BB Compatible | 1 unit | Crack detection system |
| Power Tester | Max 2500×1400mm | 1 unit | Pmax/Isc/Voc/Vm testing |
| Framing Machine | Pneumatic/Automatic | 1 unit | Module frame assembly |
| Semi-auto Laminator | 2222 Model | 1 unit | 33KW, 380V, 3-Phase |
| Cell Tester | Standard | 1 unit | 1.5KW, 220V, 1-Phase |
| Panel Tester | Standard | 1 unit | 2.5KW, 220V, 1-Phase |
| Soldering Stations | Manual | 16 units | 150W each station |
| Layup Stations | Semi-automatic | 2 units | 1KW each station |
| Auxiliary Equipment | Various | Multiple | EVA/TPT cutters, transport systems |
Technical Advantages⚡ Economic Efficiency
- Minimal Initial Investment: Starting from USD 160,000, significantly lower than fully automatic lines while maintaining professional production standards
- Rapid ROI Achievement: 2-3 year payback period with optimized operational efficiency and market-competitive output quality
- Scalable Growth Path: Modular design allows seamless expansion from 5MW to 10MW, 20MW, or full automation as business grows
Technical Superiority
- Multi-Technology Compatibility: Seamlessly processes PERC, TOPCon, and HJT cells without major equipment modifications
- Advanced MBB Integration: Enhanced electrical performance with reduced silver consumption and improved crack tolerance
- Precision Quality Control: Integrated EL testing and power measurement ensure consistent module quality and performance
- Flexible Configuration: Supports half-cell, third-cell, and bifacial module production on the same line
Operational Excellence
- Minimal Workforce Requirements: Only 12-15 operators per shift, reducing labor costs while maintaining productivity
- Compact Footprint Design: Optimized layout requires just 500m² production space, ideal for urban or space-constrained locations
- Quick Installation Timeline: Complete setup and commissioning within 5-6 months from order placement
- Comprehensive Training Program: Full operator and maintenance training included, ensuring smooth production startup
Service & Support
- Turnkey Solution Delivery: Complete factory layout design, equipment installation, and process optimization
- 24/7 Technical Support: Remote diagnostics and on-call technical assistance across all time zones
- Global Experience Network: Proven installations in 20+ countries with localized support capabilities
- Continuous Technology Updates: Access to latest process improvements and technology upgrades
Product Applications
Residential Solar Market
The 5MW production line excels in manufacturing panels for residential applications, producing 100W-400W modules perfectly sized for rooftop installations. The flexibility to produce both standard and customized panel sizes allows manufacturers to meet specific regional building codes and aesthetic requirements. With growing demand for home solar systems worldwide, this market segment offers stable, long-term growth potential.
Commercial & Industrial Projects
Commercial buildings and industrial facilities represent a rapidly expanding market for 400W-550W high-efficiency panels. The production line's capability to manufacture larger format modules using M10 and M12 cells positions manufacturers to capitalize on the C&I sector's preference for high-power, space-efficient solutions. These projects typically offer higher margins and repeat business opportunities.
⚡ Small-Scale Solar Farms
Distributed generation projects and community solar farms require 550W-720W bifacial modules for optimal land utilization. The production line's support for bifacial technology and high-power configurations enables manufacturers to serve this growing segment, particularly in regions promoting renewable energy through feed-in tariffs and net metering policies.
Off-Grid & Rural Electrification
Developing markets present significant opportunities for portable and specialized solar solutions. The line's versatility allows production of compact panels for solar home systems, water pumping applications, and rural electrification projects. Government initiatives and international development programs often provide stable demand in these segments.
Emerging Applications
- Building-Integrated Photovoltaics (BIPV): Custom-sized panels for architectural integration
- Agrivoltaics: Specialized modules for agricultural dual-use applications
- Floating Solar: Panels designed for water-based installations
- Electric Vehicle Charging: High-efficiency modules for EV charging infrastructure
