Quick answer: This is Ooitech's complete solar panel laminator catalogue: ten models covering semi-automatic and fully automatic machines, from a 600 mm by 600 mm laboratory chamber up to 2600 mm by 1500 mm production platens. It includes the model naming convention, a technical specification comparison across all ten machines, individual specifications for each, common system descriptions, safety controls, key component brands, factory and installation requirements, warranty terms and operating notes. Chamber size is the first decision, because it fixes how many modules load at once; the second is whether one or two chambers suit your cycle, since a double-chamber machine keeps the vacuum pumps working while the other side loads. Temperature uniformity across the platen is the specification that decides laminate quality: a cold corner leaves uncured encapsulant that fails years later. Silicone oil and vacuum pump selection follow from the chamber volume and the cycle time you need.

PV Module Manufacturing · by Jerry, Ooitech

1. Product Overview & Application
2. Model Naming Convention
3. Technical Specification Comparison Table (All Models)
4. Individual Model Specifications
5. Common System Descriptions
6. Safety Control
7. Key Components & Brands
8. Factory / Installation Requirements
9. Warranty & After-Sales Service
10. Operating & Safety Notes (User Manual Extract)

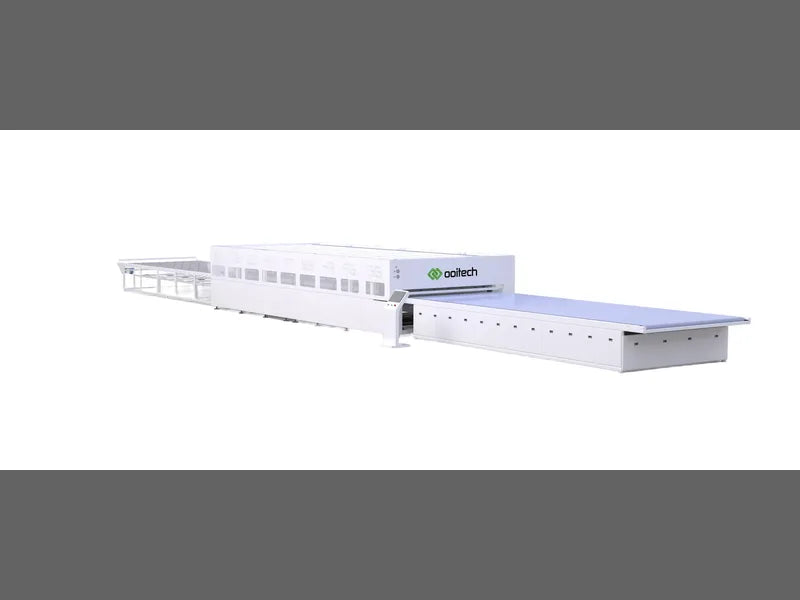

1. Product Overview & Application

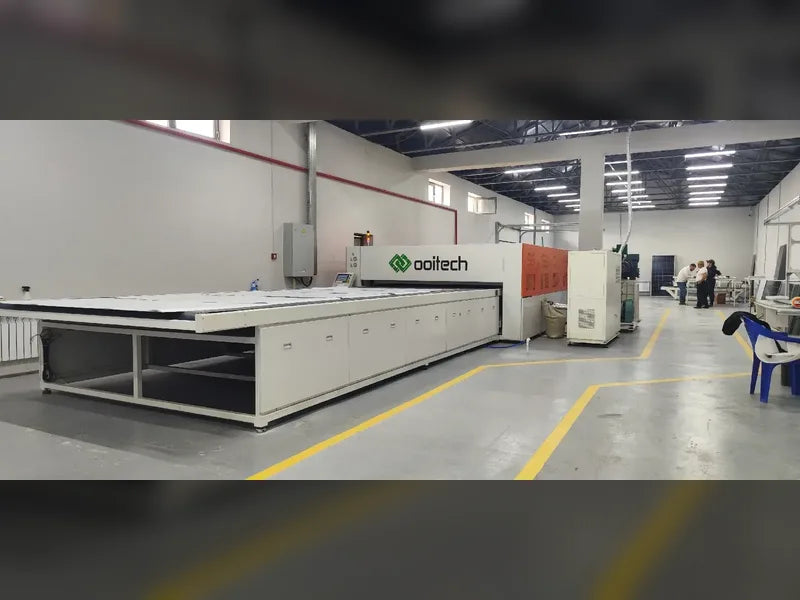

The solar panel laminator is the most critical process equipment in the photovoltaic module production line. It bonds multiple layers of materials — EVA encapsulant, tempered glass, backsheet, and solar cells — together through a controlled combination of heat and vacuum inside a sealed lamination chamber.

Ooitech offers a complete range of laminators from compact semi-automatic bench-top models to large-scale fully-automatic double-layer, triple-chamber production lines. All models are compatible with:

• Mono-crystalline silicon solar modules
• Poly-crystalline silicon solar modules
• Double-glass solar modules (bifacial)
• TOPCon, HJT and other advanced cell technologies

2. Model Naming Convention

Code Letter	Meaning
H	Semi-automatic
A	Single chamber
S	Double chamber
T	Triple chamber
B	Double layer (stacked)
D	Electric heating (when used as suffix; "DD" = double layer double chamber)
Numeric suffix (e.g. 2787, 2658): represents effective lamination area dimensions (Width × Length in mm, abbreviated)

3. Technical Specification Comparison Table — All Models

Parameter	OCY-H600D	OCY-1111	OTCY-2615	OTCY-2446	OTCY-2658(Single)	OTCY-2666	OTCY-2658(Double)	OTCY-2787D	OTCY-2787DD	OTCY-BT2787
— Basic Configuration —
Operation Mode	Semi-Auto	Semi-Auto	Semi-Auto	Full Auto	Automatic	Automatic	Full Auto	Full Auto	Full Auto	Full Auto
Chamber Configuration	Single	Single	Single	1 Lam.	Single	Single	1 Lam. + 1 Cur.	1 Lam. + 1 Cur.	2 Lam. + 2 Cur.(Double Layer)	2 Lam. + 2 Cur. + 2 Cool.(Double Layer)
Heating Mode	Electric	Electric	Electric	Oil	Oil	Oil	Oil	Oil	Oil	Oil
— Dimensions & Capacity —
Lamination Area (mm)	600 × 600	1100 × 1100	2600 × 1500	4600 × 2400	2600 × 5800	2600 × 6600	5800 × 2600	8700 × 2700	8700 × 2700× 2 layers	8700 × 2700× 2 layers
Chamber Net Height (mm)	35	35	35	35	35	35	35	35	40	40
Machine Size (m)	1.1×1.1×1.0	1.5×2.0×1.4	3.1×2.5×1.4	14.98×3.4×1.8	18.5×3.58×1.8	21.1×3.58×1.8	21.3×3.58×1.8	37.3×3.68×1.8	37.3×4.88×3.4	47.2×4.9×3.4
Machine Weight	0.5 T	2.3 T	5 T	16 T	25 T	25 T	—	—	128 T	170 T
— Power & Electrical —
Power Supply	AC 380V / 50Hz / 3-Phase 5-Wire (all models)
Rated Power	5 kW	11.5 kW	33 kW	70 kW	90 kW	90 kW	185 kW	190 kW	395 kW	460 kW
Average Working Power	1.5 kW	3.5 kW	≤8.5 kW	≤30 kW	—	≤45 kW	≤95 kW	95 kW	≤190 kW	≤220 kW
Heating Power	3+1.2 kW	8.5 kW	27 kW	54 kW	90 kW	72 kW	72 kW × 2	72 kW × 2	72 kW × 4	72 kW × 2 (per layer)
— Temperature —
Temperature Range	30–200°C	30–200°C	30–200°C	30–180°C	30–180°C	30–180°C	30–180°C	30–180°C	30–180°C	30–180°C
Temperature Precision	±1°C	±1°C	±1°C	±1°C	±1°C	±1°C	±2°C	±1°C	±1°C	±1°C
Temperature Uniformity	≤±2°C	≤±2°C	≤±2°C	≤±2°C	≤±1.5°C	≤±2°C	≤±1°C	≤±2°C	≤±2°C	≤±1.5°C
Temp. Control Points	—	—	—	5	5	5	5	5	Standard per chamber	5 per chamber
— Vacuum —
Vacuum Degree (operating)	40–100 Pa	40–100 Pa	40 Pa	40–100 Pa	40–100 Pa	40 Pa	40–100 Pa	40–100 Pa	40–100 Pa	40–100 Pa (ult. 40 Pa)
Vacuum Time (adjustable)	5–30 min	5–30 min	5–30 min	5–30 min	5–30 min	5–30 min	5–30 min	5–30 min	5–30 min	5–30 min
Vacuum Pump	VRD-24 (24 m³/h)	2X-30 (30 L/s)	2X-30	2X-70	2X-70 + ZJP600	2X-70 + ZJP600	2X-70+ZJP600 / 2X-70	2X-70+ZJP600 / 2X-70	2×(2X-70+ZJP600) / 2×2X-70	2×2X-70+ZJP600 / 2×2X-70 / 2X-70
— Air Supply —
Air Supply Pressure	0.6 ~ 0.8 MPa (all models)
Compressed Air Flow	≥200 L/min	≥300 L/min	≥300 L/min	≥400 L/min	≥400 L/min	≥600 L/min	≥800 L/min	≥800 L/min	≥1000 L/min	≥800 L/min × 6
— Performance —
Work Cycle	Manual	Manual	Manual	≤18 min	≤18 min	≤18 min	≤9 min	≤9 min	≤9 min	≤9 min (per layer)
Availability	—	—	—	98%	—	—	—	—	—	≥99%
Service Life	≥ 10 years (all models)
Conveying Speed	—	—	—	4–14 m/min	4–14 m/min	4–14 m/min	4–14 m/min	4–14 m/min	4–14 m/min	4–14 m/min
Loading / Unloading	Manual	Manual	Manual	Belt / SS rollers	Belt / SS rollers (buffer opt.)	Belt / SS rollers (buffer opt.)	Belt / SS rollers (buffer opt.)	Belt / SS rollers (buffer opt.)	Belt / SS rollers (buffer opt.)	Stacked belt / Stacked SS rollers
Operating Platform	Touch Screen + PLC (all models)
Working height (cover open)	—	—	—	100–120 mm	100–120 mm	100–120 mm	100–150 mm	100–120 mm	100–120 mm	100–120 mm
Max. cover height (maint.)	—	—	—	≥250 mm	≥250 mm	≥250 mm	≥250 mm	≥250 mm	≥250 mm	≥250 mm
Aeration Rate	—	—	—	0–50 L/s	0–50 L/s	0–50 L/s	0–5 L/s	0–70 L/s	0–50 L/s	0–50 L/s

4. Individual Model Specifications

Lamination Area	600 × 600 mm	Heating Mode	Electricity Heating (Double-side)
Rated Power	5 kW	Avg. Working Power	1.5 kW
Heating Power	3 kW + 1.2 kW	Temperature Range	30°C – 200°C
Temp. Precision	±1°C	Temp. Uniformity	≤±2°C
Vacuum Degree	40–100 Pa	Vacuum Time	5–30 min (adjustable)
Vacuum Pump	VRD-24 (24 m³/h) — Feiyue brand	Chamber Height	35 mm
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥200 L/min
Working Cycle	Manual	Operating Platform	Touch Screen + PLC
Machine Size	1100 × 1100 × 1000 mm	Weight	0.5 T
Service Life	≥10 years

Note: Heating time from room temperature to 145°C:<60 minutes. Vacuum time to reach 100Pa: <120 seconds.

Lamination Area	1100 × 1100 mm	Heating Mode	Electricity Heating
Rated Power	11.5 kW	Avg. Working Power	3.5 kW
Heating Power	8.5 kW	Temperature Range	30°C – 200°C
Temp. Precision	±1°C	Temp. Uniformity	≤±2°C
Vacuum Degree	40–100 Pa	Vacuum Time	5–30 min (adjustable)
Vacuum Pump	2X-30 (30 L/s) — Sichuang Nanguang	Chamber Height	35 mm
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥300 L/min
Working Cycle	Manual	Operating Platform	Touch Screen + PLC
Machine Size	1500 × 2000 × 1400 mm	Weight	2.3 T
Service Life	≥10 years

Note: Heating time from room temperature to 145°C:<50 minutes. Vacuum time to reach 100Pa: <120 seconds.

Lamination Area	2600 × 1500 mm	Heating Mode	Electric Heating
Rated Power	33 kW	Avg. Working Power	≤8.5 kW
Heating Power	27 kW	Temperature Range	30°C – 200°C
Temp. Precision	±1°C	Temp. Uniformity	≤±2°C
Vacuum Degree	40 Pa	Vacuum Time	5–30 min (adjustable)
Vacuum Pump	2X-30	Chamber Height	35 mm
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥300 L/min
Working Cycle	Manual	Operating Platform	Touch Screen + PLC
Machine Size / Weight	3.1 × 2.5 × 1.4 m / 5 T
Service Life	≥10 years

Electric heating with module control for improved temperature uniformity. Heating to 145°C:<50 minutes. Vacuum to 100Pa: <120 seconds.

Lamination Area	4600 × 2400 mm	Heating Mode	Oil Heating
Rated Power	70 kW	Avg. Working Power	≤30 kW
Heating Power	54 kW	Temperature Range	30°C – 180°C
Temp. Precision	±1°C	Temp. Uniformity	≤±2°C
Temp. Control Points	≥5	Chamber Height	35 mm
Vacuum Degree	40–100 Pa	Vacuum Time	5–30 min
Vacuum Pump	2X-70 (+ ZPJ300 Roots — user spec.)	Aeration Rate	0–50 L/s
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥400 L/min
Work Cycle	≤18 min	Availability	98%
Chamber Config.	1 Lamination Chamber	Loading / Unloading	Belt loading / SS roller discharge
Operating Platform	Touch Screen + PLC (Siemens)	Conveying Speed	4–14 m/min
Machine Size / Weight	14.98 × 3.4 × 1.8 m / 16 T
Service Life	≥10 years

Lamination Area	2600 × 5800 mm	Heating Mode	Oil Heating
Rated Power	90 kW	Temp. Uniformity	≤±1.5°C
Temp. Precision	±1°C	Temperature Range	30°C – 180°C
Temp. Control Points	≥5	Chamber Height	35 mm
Vacuum Degree	40–100 Pa (ult.<40 Pa)	Vacuum Time	5–30 min (adj.)
Vacuum Pump	2X-70 + ZJP600 Roots	Aeration Rate	0–50 L/s
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥400 L/min
Pumping Rate	≥600 m³/h (100Pa in<90s)	Work Cycle	≤18 min
Chamber Config.	Single Chamber	Loading / Unloading	Belt / SS rollers (buffer optional)
Operating Platform	Touch Screen + PLC (Siemens)	Conveying Speed	4–14 m/min
Machine Size / Weight	18.5 × 3.58 × 1.8 m / 25 T
Service Life	≥10 years

Lamination Area	2600 × 6600 mm	Heating Mode	Oil Heating
Rated Power	90 kW	Avg. Working Power	≤45 kW
Heating Power	72 kW	Temperature Range	30°C – 180°C
Temp. Precision	±1°C	Temp. Uniformity	≤±2°C
Temp. Control Points	≥5	Chamber Height	35 mm
Vacuum Degree	40 Pa	Vacuum Time	5–30 min (adj.)
Vacuum Pump	2X-70 + ZJP600 Roots	Aeration Rate	0–50 L/s
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥600 L/min
Pumping Rate	≥600 m³/h (100Pa in<90s)	Work Cycle	≤18 min
Chamber Config.	Single Chamber	Loading / Unloading	Belt / SS rollers (buffer optional)
Operating Platform	Touch Screen + PLC (Siemens)	Conveying Speed	4–14 m/min
Machine Size / Weight	21.1 × 3.58 × 1.8 m / 25 T
Service Life	≥10 years

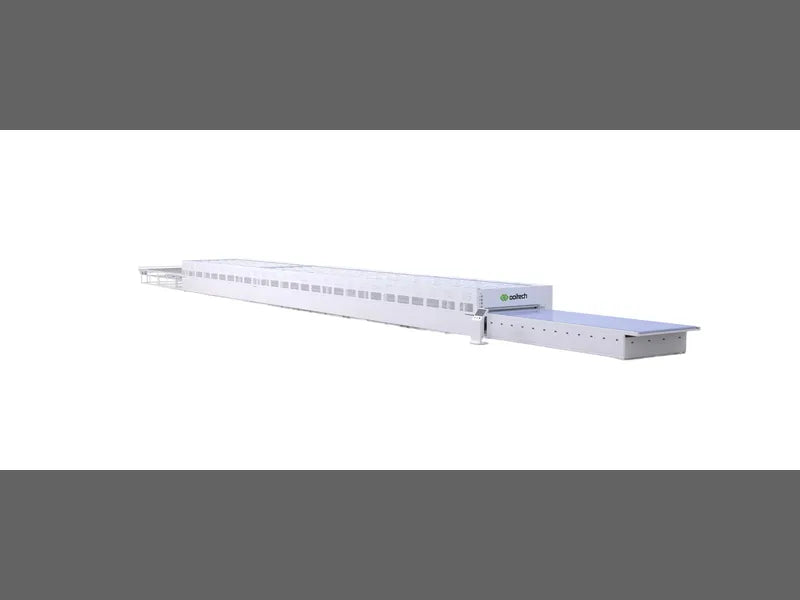

Lamination Area	5800 × 2600 mm (Double chamber)	Heating Mode	Oil Heating
Rated Power	185 kW	Avg. Working Power	≤95 kW
Heating Power	72 kW × 2	Temperature Range	30°C – 180°C
Temp. Precision	±2°C	Temp. Uniformity	≤±1°C
Temp. Control Points	5	Chamber Height	35 mm
Vacuum Degree	40–100 Pa	Vacuum Time	5–30 min
Vacuum Pump (Lam.)	2X-70 + ZJP600 Roots	Vacuum Pump (Cur.)	2X-70
Aeration Rate	0–5 L/s	Pumping Rate	<90s to 100Pa
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥800 L/min
Work Cycle	≤9 min	Chamber Config.	1 Lamination + 1 Curing
Loading / Unloading	Belt / SS rollers (buffer optional)	Conveying Speed	4–14 m/min
Operating Platform	Touch Screen + PLC (Siemens)	Curing Cover Height	120–150 mm (working); ≥250 mm (maint.)
Machine Size	21.3 × 3.58 × 1.8 m
Service Life	≥10 years

Lamination Area	8700 × 2700 mm	Heating Mode	Oil Heating
Rated Power	190 kW	Avg. Working Power	95 kW
Heating Power	72 kW × 2	Temperature Range	30°C – 180°C
Temp. Precision	±1°C	Temp. Uniformity	≤±2°C
Temp. Control Points	5	Chamber Height	35 mm
Vacuum Degree	40–100 Pa (ult. 40 Pa)	Vacuum Time	5–30 min
Vacuum Pump (Lam.)	2X-70 + ZJP600 Roots; pumping rate ≥630 m³/h (100Pa in<90s)	Vacuum Pump (Cur.)	2X-70 rotary vane; ≥70 L/s
Aeration Rate	0–70 L/s	Inflation Valve	SMC VXZ260KG (zero differential pressure, two-way solenoid)
Air Supply	0.6–0.8 MPa	Compressed Air Flow	≥800 L/min
Work Cycle	≤9 min	Chamber Config.	1 Lamination + 1 Curing
Loading / Unloading	Belt / SS rollers (buffer optional)	Conveying Speed	4–14 m/min
Operating Platform	Touch Screen + PLC (Siemens/Kunlun)	Key Pneumatics	Japanese SMC
Machine Size	37.3 × 3.68 × 1.8 m
Service Life	≥10 years

Lamination Area	8700 × 2700 mm × 2 layers	Heating Mode	Oil Heating
Rated Power	395 kW	Avg. Working Power	≤190 kW
Heating Power	72 kW × 4	Temperature Range	30°C – 180°C
Temp. Precision	±1°C	Temp. Uniformity	≤±2°C
Temp. Control Point	Standard per chamber	Chamber Height	40 mm
Vacuum Degree	40–100 Pa	Vacuum Time	5–30 min
Vacuum Pump	2× (2X-70 + ZJP600) Roots (lam.) / 2× (2X-70) rotary (cur.)	Pumping Rate	≥630 m³/h (lam., 100Pa<90s)
Aeration Rate	0–50 L/s	Air Supply	0.6–0.8 MPa
Compressed Air Flow	≥1000 L/min	Work Cycle	≤9 min
Chamber Config.	2 Lamination + 2 Curing (Double Layer)	Loading / Unloading	Belt / SS rollers (buffer optional)
Operating Platform	Touch Screen + PLC	Conveying Speed	4–14 m/min
Machine Size / Weight	37.3 × 4.88 × 3.4 m / 128 T (Ground bearing: 3.0 T/m²)
Service Life	≥10 years

Factory Requirements (OTCY-2787DD)

Item	Parameter
Power Supply	380V/50Hz, 3-phase 5-wire. Peak: 395 kW; Operating: 190 kW
Compressed Air	Pressure: 0.8 MPa (min 0.6 MPa); Peak flow: 1000 L/min; Operating flow: 600 L/min; Interface: Φ16 mm × 2
Cooling Water	Normal circulation (for vacuum pump)
Exhaust Demand	Temperature<180°C; Flow: 30 m³/h
Clean Room	ISO Class 5
Floor Flatness	±10 mm
AC Conditioning	25 ± 5°C

Full Name	Double Layer Triple Chamber Oil Heating Solar PV Module Laminator
Lamination Area	2700 × 8700 mm × 2 layers
Rated Power	460 kW (standard)
Heating Power	72 kW × 2 (per layer)
Temperature Range	30°C – 180°C
Temp. Precision	±1°C
Chamber Height	40 mm (lam.); working cover: 100–120 mm; max: ≥250 mm
Vacuum Degree (op.)	40–100 Pa
Vacuum Time	5–30 min (adjustable)
Air Supply	0.6–0.8 MPa
Work Cycle	≤9 min (per layer)
Machine Weight	170 T
Silicon Gel Plate Life	≥3000 uses
Operating Platform	Independent Double Touch Screen
Production Line Docking Height	Lower layer: 950 ± 30 mm; Upper layer: 2630 ± 30 mm
Boundary Dimension	47.2 × 4.9 × 3.4 m (incl. 2nd layer maintenance platform)
Host Machine Dimension	30.5 m (L) × 3.7 m (W) × 3.4 m (H)
2nd Layer Maintenance Platform	Width: 600 mm; Height: 1800 mm; Guardrail height: 900 mm
Service Life	≥10 years

Structure Summary

• Unit Constitution: Loading stage ×2, Process stage I ×2 (Laminating), Process stage II ×2 (Solidifying), Cooling stage ×2, Unloading stage ×2
• Vacuum equipment: Ten sets of 2X-70 rotary vane pumps, two sets of ZJP600 Roots pumps
• Heating: Four sets of 72 kW heating stations (SD320 thermal oil)
• Each laminating chamber is independent; each layer can execute lamination separately
• Upper and lower high-temperature cloth systems equipped with roller brush devices for residue elimination
• Specialized maintenance platform with climbing ladder for 2nd-floor access (600 mm wide, 1800 mm height, 900 mm guardrail)

Cooling Stage (unique to BT2787)

• Same structural form as process stage, but configured with an industrial chiller for water circulation cooling of modules exiting the process chambers
• Cooling base plate: Q235 steel, 40 mm thickness, finely ground surface; internal perforations allow coolant flow
• Temperature measurement points on base plate: ≥5, real-time display
• Cooling stage vacuum pump: rotary vane pump, ≥70 L/s; 100 Pa in<90s

5. Common System Descriptions

The following descriptions apply to all full-automatic oil-heating models (OTCY-2446, 2658, 2666, 2787D, 2787DD, BT2787). Semi-automatic electric models share the same control and safety logic but have simplified mechanical structure.

5.1 Feeding System

• The feeding stage uses an anti-deviation conveyor belt to perfectly transition modules to the main laminating unit.
• Controlled by frequency conversion system + photoelectric positioning system + encoder fool-proofing system. Transmission speed is continuously adjustable from 4 to 14 m/min.
• Three operating modes available: Auto feeding, Manual feeding, and Emergency management (via transmission inching button).
• Photoelectric sensor at the end of the conveyor belt provides module protection and positioning. If positioning deviation is detected, modules cannot enter the lamination section (alarm triggered).
• Double-layer (BT2787, 2787DD) models use stacked belt loading platforms — each layer has its own independent loading unit.

5.2 Laminating / Curing Section

• Chamber structure: Each lamination chamber consists of an upper chamber (upper box) and a lower heating plate, separated by a silica gel plate with a sealable bead/pressing frame, forming two independent sub-chambers (upper and lower).
• Heating plate: Made of 60 mm thick Q235 steel plate. Surface is finished by fine grinding; surface irregularity ≤200 µm/m². Double-inlet and double-outlet pipeline design for heat-conducting oil.
• Heating rate: Not less than 1.5°C/min.
• Temperature deviation: ≤±2°C (standard); ≤±1.5°C (premium models).
• Temperature measurement: ≥5 points per heating plate, displayed in real-time on touch screen.
• Each sub-chamber can be independently vacuumed and inflated. The vacuum value is set and controlled — supports segmented / staged lamination profiles. A SMC pressure sensor monitors real-time pressure; a Pa-class vacuum gauge is installed in the lower chamber.
• Laminating section vacuum pump: 2X-70 rotary vane + ZJP600 Roots pump set. Pumping rate ≥630 m³/h (OTCY-2787D/DD) or ≥600 m³/h (2658/2666). Time to 100 Pa:<90 seconds.
• Curing section vacuum pump: 2X-70 rotary vane pump. Pumping rate ≥70 L/s. Time to 100 Pa:<90 seconds.
• Cover lifting: Working opening height 100–120 mm; ultimate opening height (maintenance) ≥250 mm.
• Positioning accuracy: Gear motor + frequency control + encoder system. Repeat positioning accuracy within ±10 mm.
• Upper and lower conveyor belts of the main laminating unit are equipped with roller brush cleaners to remove EVA/film residue from the high-temperature cloth.
• The heating plate is equipped with a special blowing device (on 2658/2666 models) to prevent the high-temperature cloth from sticking to the plate surface.

5.3 Unloading / Discharge Section

• Discharge conveyed by stainless steel rollers driven by frequency conversion system, speed adjustable to match feed and host machine speed.
• Optional: buffer-type stainless steel roller unloading.
• Photoelectric sensors at front and rear ends monitor discharge in real-time to prevent modules from falling.
• The discharge section includes a fan cooling function — fans activate automatically when modules are discharged to accelerate cooling.
• Double-layer models (BT2787, 2787DD) use stacked multi-roller conveyors with integrated air coolers for accelerated module cooling.

5.4 Transmission System

• Main machine transmission: Gear motor + frequency control speed + encoder control, driving high-temperature cloth via chain. Repeat positioning accuracy: ±10 mm.
• Feeding and discharging stages: Gear motor + frequency control speed to match main engine speed.
• High-temperature cloth is arranged in a large-cycle circular motion — multiple cloths connected in series, continuously circulating without disconnection during the entire transmission process. The connection/join points of upper and lower cloths do NOT contact the module surface.
• Synchronous gear design ensures upper and lower high-temperature cloth systems always move in synchrony.
• Chain tensioning design + anti-jumping gear device reduces chain looseness from wear, ensuring smooth, continuous transmission without chain breakage or jumping.

5.5 Lifting System

• Both laminating and curing stages use pneumatic lifting, controlled by three-position five-way solenoid valves.
• Key pneumatic components (cylinders, lifting solenoid valves, pneumatic solenoid valves) use Japanese SMC (or equivalent reputable) brand components.
• Each cylinder's inlet and outlet are equipped with exhaust throttle valves to adjust lifting speed, ensuring stable and synchronous cylinder movement.
• Independent air control safety system: A dedicated air safety circuit — separate from the main hoisting mechanism — provides a holding signal for each cylinder. This prevents the upper chamber from falling due to power outages, pipe bursts, or other abnormal causes.
• Double-layer 2787DD model: Uses 8-column pneumatic lifting arrangement per chamber for stability on the large-format platform.

5.6 Heating System (Oil Heating Models)

• The heating plate is heated by heat-conducting oil circulating through a perforated/drilled plate. Double-inlet and double-outlet pipeline design for uniform temperature distribution.
• Heating rate: ≥1.5°C/min.
• Temperature deviation: ≤±2°C (standard); ≤±1.5°C (BT2787, 2658 single-chamber).
• Multi-point temperature control with PID self-tuning technology (standard temperature module). Achieves excellent temperature uniformity.
• Heating station from qualified manufacturers: provides real-time monitoring of temperature and pressure, with automatic alarm and shutdown on over-temperature or over-pressure conditions.
• BT2787 uses SD320 thermal oil with four sets of 72 kW heating stations.
• Oil tank over-temperature alarm: engine stops and alarms if oil temperature exceeds 180°C.
• Operating procedure: Allow oil pump to run in normal circulation for at least 3 minutes before turning on heating. When shutting down: stop heating first, then turn off the oil pump. Do NOT turn off the hot oil pump when temperature is above 100°C.

5.7 Vacuum System

• Lamination chamber vacuum controlled by a high-vacuum butterfly valve (Roots pump set).
• Under working temperature conditions, the ultimate vacuum of the lamination chamber can reach below 40 Pa. In automatic operation mode, lamination chamber vacuum ≤100 Pa.
• Each chamber is equipped with a Japanese SMC zero differential pressure pneumatic membrane two-way solenoid valve (VXZ260KG) for vacuum chamber inflation. Inflation rate freely adjustable from 0–50 L/s (or 0–70 L/s on OTCY-2787D).
• Each chamber has an SMC pressure sensor for real-time chamber pressure monitoring. Touch screen displays live pressure. Lower chamber additionally equipped with a Pa-class vacuum gauge.
• The entire vacuum/pneumatic system is equipped with a manual backup operating system for manual inflation and venting during unexpected power failure, minimizing losses from fault conditions.

5.8 Control System

• Whole equipment controlled by PLC (Siemens) + Touch Screen (Kunlun Tongtai).
• Multi-recipe storage: Various process recipes (formulas) can be saved and recalled at any time, accommodating different manufacturers and material batches.
• Data persistence: Process parameters and setting data are automatically memorized and stored on every power cycle — no loss of settings.
• Lamination count statistics: Records production count per shift for scheduling, maintenance planning, and consumable replacement tracking.
• MES integration: Optional production process management system (MES) available upon user request.
• Three production modes selectable by operator: Manual, Semi-automatic, and Automatic. If an abnormality occurs during automatic operation, the machine can switch to manual mode to reduce losses.
• Three-stage lamination supported; vacuum and pressure values are independently set and controlled for each stage.
• High-end brand electrical components: superior performance, reliable quality, low replacement rate.
• Equipment cabling, piping, and installation accessories comply with national standards and relevant regulations.
• BT2787 features independent double touch screens (one per layer) for simultaneous independent control of each production layer.

6. Safety Control

6.1 Alarm & Protection Functions (Oil Heating Models)

Item	Alarm / Control Description
Laminate Module Positioning	If modules are outside the orientation range, lamination is inhibited and an alarm is triggered.
Heating Station High/Low Level	Independent liquid level detection device monitors oil level continuously. Alarm is triggered if level goes out of range.
Oil Tank Over-Temperature	If heated oil temperature exceeds 180°C, the engine stops and alarm is triggered.
Heating Plate Over-Temperature	Max and min temperature limits are set for the heating plate. Alarm is triggered if temperature goes beyond the set range.
Oil Pressure Detection	Alarm is triggered if oil pressure exceeds the set value.
Air Source Pressure Detection	Alarm is triggered if compressed air pressure goes beyond the set range.
Vacuum Alarm	Alarm triggered if the vacuum level fails to reach the set value within the stipulated time.
Oil Pump Overload Protection	Engine alarms if oil pump is overloaded.
Vacuum Pump Protection	Monitors vacuum pump working state and triggers alarm on failure.

6.2 Alarm & Protection Functions (Electric Heating / Semi-Auto Models)

Item	Alarm / Control Description
Heating Plate Over-Temperature	Max and min temperature limits set. Alarm if temperature exceeds set value.
Air Source Pressure Detection	Alarm if air pressure exceeds set value.
Vacuum Alarm	Alarm if vacuum pressure fails to reach set value within stipulated time.
Vacuum Pump Protection	Monitors vacuum pump working state; alarms on breakdown.
Heating Current Protection	Monitors and protects heating current; alarms on over-current or overload.
Open/Close Cover System	In automatic mode, if the specified cover command is not met within the set time, system alarms.
Alarm Recording Function	Records alarm time and cancellation time accurately. Up to 100 operating parameter records with export/storage capability.

6.3 Anti-Drop Safety (All Models)

• Dual safety measures: pilot-operated air control valve + mechanical lock. The upper cover will not fall when the equipment is suddenly powered off or the pipeline is faulty, preventing lamination failure and personnel injury.
• An independent air control safety system prevents the upper chamber from falling due to power failures or burst pipes.

6.4 Other Safety Features

• Safety warning signs on all relevant parts.
• Three-color lights and alarm system for real-time equipment operation status monitoring.
• Process password protection: Modification of process parameters requires authorized password entry.
• Vacuum indicator: In case of sudden power failure, lamination status can be assessed and appropriate action taken.
• Insulation measures: All pipelines and heating parts are thermally insulated to reduce energy consumption and temperature loss.
• Emergency stop button: Powers off the whole machine when pressed. Reset by rotating in the arrow direction on the button.
• Vacuum pipe between vacuum pump and laminator should not exceed 12 meters to maintain vacuum performance.
• Before opening the cover, confirm that the lower chamber has been inflated to atmosphere. Opening the cover under negative pressure is strictly prohibited.

7. Key Components & Brands

Component	Brand (Full-Auto Oil Models)	Brand (Semi-Auto Electric Models)
PLC	Siemens	Siemens
Touch Screen	Kunlun Tongtai	Kunlun Tongtai
Circuit Breaker	Schneider	Schneider
AC Contactor	Schneider	Schneider
Solid State Relay	Gold	Gold
Air Cylinder	Japanese SMC	AirTAC
Filter Regulator	SMC	AirTAC
Pressure Sensor	SMC	SMC
Inflation Valve (Solenoid)	SMC VXZ260KG	SMC
Vacuum Butterfly Valve	Shanhai Biaorui (high-vacuum)	Shanhai Biaorui / China Shanhai
Butterfly Valve (small models)	—	FLOWX (OCY-H600D)
Vacuum Pump	Sichuang Nanguang (2X-70)	Sichuang Nanguang / Feiyue
High-Temperature Cloth	Jiangsu	Jiangsu
Silicone Membrane Sheet	Shandong / Jiangsu	Shandong / Jiangsu

8. Factory / Installation Requirements (General)

Requirement	Specification
Ambient Temperature	0°C – 45°C
Relative Humidity	< 75%
Power Line	AC380V ±5%, 3-phase 5-wire. For distance<50 m with good heat dissipation, a single 50 mm² (3+2) GB copper cable per supply is acceptable. Increase wire diameter as appropriate for longer runs.
Air Source Connector	12 mm PU tube. Air pressure: 0.6–0.8 MPa (min 0.6 MPa per DIN ISO 8573-1). Flow: per model specification (see comparison table)
Cooling Water (vacuum pump)	Industrial circulating cooling water per GB50050-2007. Flow: 600 L/h (2X-70 pump) + 960 L/h (Roots pump). Interface: 1/2″ (2X-70 pump). Customer to provide self-priming pump if needed.
Clean Room Level	ISO Class 5 (for large-format automatic models)
Floor Flatness	±10 mm
Air Conditioning	25 ± 5°C (temperature-controlled workshop recommended)
Ground Bearing	Per model weight (see individual specs). OTCY-2787DD: 3.0 T/m²

9. Warranty & After-Sales Service

• Warranty Period: One year after successful installation, or 16 months from bill of lading date — whichever is earlier.
• Warranty Coverage: During the warranty period, the seller provides timely maintenance services and necessary spare parts free of charge (excluding consumables). Courier costs for spare parts are the buyer's responsibility.
• On-site Support: If buyer's engineers cannot resolve an issue during the warranty period, the seller will dispatch engineers to the buyer's plant. Round-trip airfare, local transport, accommodation, and meals in the buyer's city are at the buyer's expense.
• Warranty Exclusions: Damage or malfunctions arising from misuse, abuse, self-demolition or modification by any party other than the seller's authorized technicians, or use inconsistent with the operation manual.
• Post-Warranty Support: The seller continues to provide free online service and technical guidance indefinitely after the warranty period. Spare parts are supplied to the buyer at favorable prices. On-site engineer visits after warranty: buyer covers airfare, visa, accommodation, travel expenses, and labor costs per the seller's standards.
• Consumables: Provided upon payment at all times (not covered under warranty).
• Operator Training: After installation and commissioning, machines must be operated only by trained personnel.

10. Operating & Safety Notes (User Manual Extract)

Extracted from the Ooitech Laminator Operating Instruction manual (Model A2236 and applicable to all full-auto models).

10.1 Symbol Guide

Symbol	Meaning / Warning
⚠ Be Careful	Risk of bump or tripping in this area. Pay attention to limb and body safety.
???? High Temperature	Workbench temperature can reach up to 180°C during and after operation. Confirm temperature is in safe range before touching. Do NOT loosen oil pipeline joints or flanges during or after operation while oil is still hot. Do NOT remove heating box protective panels arbitrarily.
✋ Watch Your Hands	Upper box cover falling hazard. Ensure no personnel are in the working area when the machine is operating or being serviced.
⚙ Mechanical Wounding	Conveyor chains and belts can cause entanglement. All personnel in the production area must wear work clothes and work caps. Long hair must be fully tucked into the cap.
⚡ Electric Shock	Power distribution cabinet installed in equipment area. Contact maintenance electrician for any electrical operation.

10.2 Key Operating Precautions

1. Do not use this product in corrosive gas, moisture, flammable, or explosive environments.
2. Ensure the machine is properly grounded before operation.
3. Do not open the terminal protective cover when the device is powered or running.
4. Do not touch the circuit board with bare hands — risk of electric shock and ESD damage.
5. Operators must wear insulated gloves when manually placing or removing laminated modules.
6. Maintenance personnel must power off the machine before maintenance. Verify no danger exists before wiring, checking, or moving the machine.
7. When starting or closing the machine, keep hands away from the main unit. In emergency, press the emergency stop button immediately.
8. During belt/chain transmission movement, non-operators must leave the area. Operators must not place hands or body parts near or into the conveyor belt.
9. When machine is in working condition, all non-operators must stand at least 1 meter from the machine.
10. Visitors and non-professionals are not allowed to operate this machine.
11. The vacuum pipe between vacuum pump and laminator must not exceed 12 meters — longer distances degrade vacuum performance.
12. When shutting down the vacuum pump, first inflate both chambers to atmospheric pressure. The cover must NEVER be opened while the lower chamber is under negative pressure.
13. Allow the oil pump to run in normal circulation for at least 3 minutes before turning on heating. When shutting down: stop heating first, then turn off the oil pump. Never turn off the hot oil pump when temperature is above 100°C.
14. When the machine is not actively working, open the cover to allow heat dissipation after stopping heating.
15. Turn off the main power supply after laminator operation is complete, to avoid interference with associated equipment.
16. Do not slide or place sharp objects (e.g. blades) on the conveyor belt surface — this will shorten belt service life.
17. The automatic laminator has high precision electrical components. Do not arbitrarily reposition or redirect any electrical component — this may cause malfunction.
18. Do not place any foreign objects on the heating platform surface — the cover exerts significant pressure during operation.
19. Before opening the cover, always verify the lower chamber has been inflated to atmosphere.
20. The emergency stop button powers off the entire machine. Reset by rotating the button in the direction indicated by the arrow after troubleshooting.

10.3 Model Code Interpretation (from User Manual)

Code	Meaning	Example
H	Semi-automatic	OCY-H600D → Semi-auto, 600 mm, Electric
A	Single chamber	OTCY-A2658 → Single chamber
S	Double chamber	OTCY-S2658 → Double chamber
T	Triple chamber	OTCY-T2787 → Triple chamber
B	Double layer	OTCY-BT2787 → Double layer, Triple chamber
D (suffix)	Electric heating	OCY-H600D → Electric; 2787DD → Double Layer Double Chamber
Numeric part	Effective laminating area (abbreviated dimensions)	2787 → ~2700×8700 mm area
