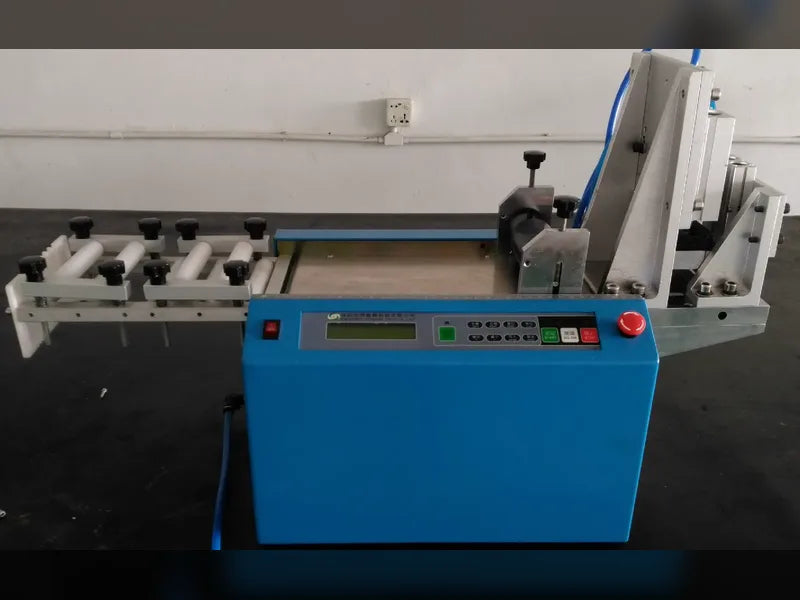

C350-SZM Ribbon Busbar Bend Cutting Machine – PV Interconnect Forming
C350-SZM busbar bend cutting machine – programmable single/dual bending for tin-plated copper busbars. Supports double glass & half-cell module interconnects. Precise PV busbar forming.
Product Introduction
The PV Bus Door-Glyph Bend Cutting Machine (Model: C350-SZM) is an advanced automated solution specifically designed and developed by Ooitech for the precise molding of PV Bus ribbons used in photovoltaic double glass modules, half-cell photovoltaic modules, and double junction box applications. This cutting-edge equipment incorporates state-of-the-art processing technology and premium imported automation accessories in its control system to deliver optimal operational performance.
As a crucial component in modern solar panel production lines, this machine effectively eliminates manual production bottlenecks in module manufacturing processes. The system features programmable switching between single and dual bending modes, allowing for seamless specification changes and enhanced production flexibility. Additionally, the integrated cutting function ensures precise length customization for various module designs.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | C350-SZM |
| Power Supply | AC220V 150W |
| Air Pressure | 0.6~0.8 Mpa |
| Air Line Connection | Φ10 mm |
| Dimensions (L×W×H) | 650 × 270 × 450 mm |
| Weight | 50 KG |
| Material Width Range | 2-8.0 mm |
| Material Thickness Range | 0.10-0.45 mm |
| Cutting Accuracy | ±(0.2+L×0.002) mm |
| Forming Specifications - Short Side | 20-100 mm |
| Forming Specifications - Long Side | 100-450 mm |
| Forming Angle | 90°±5° |
| Production Speed | 10-30 pcs/min (varies by product length) |
| Processing Article Number | 1-4 PCS |
| Processing Material | Tin-plated copper strip or other strip materials |
| Packaging | Wooden case |
*Note: Manual auxiliary material receiving required (no material receiving platform included)
Technical Advantages
Automation Excellence
- Advanced Control System: Incorporates imported automation accessories for superior performance and reliability
- Programmable Operation: Freely switch between single and dual bending modes through intuitive programming interface
- High Precision: Cutting accuracy of ±(0.2+L×0.002)mm ensures consistent product quality
Production Efficiency
- Variable Speed Processing: Adaptive production speed from 10-30 pcs/min based on product specifications
- Multi-Article Processing: Capable of processing 1-4 PCS simultaneously
- Labor Reduction: Effectively eliminates manual production inefficiencies in module manufacturing
Versatility & Flexibility
- Wide Material Compatibility: Processes various strip materials including tin-plated copper strips
- Adjustable Specifications: Accommodates width range of 2-8.0mm and thickness of 0.10-0.45mm
- Precise Angle Control: Maintains forming angle at 90°±5° for optimal interconnect performance
Compact Design
- Space-Efficient: Compact footprint (650×270×450mm) suitable for various production line configurations
- Lightweight Construction: 50 KG weight allows for easy installation and repositioning
- Low Power Consumption: Energy-efficient operation at only 150W
Product Applications
Double Glass Module Production
The C350-SZM is specifically engineered for manufacturing interconnects used in double glass photovoltaic modules, ensuring precise door-glyph formations that enhance module durability and electrical performance. The machine's programmable bending capabilities allow manufacturers to adapt quickly to different double glass module designs, from G1 to M12 specifications.
Half-Cell Module Manufacturing
In half-cell module production lines, this equipment plays a critical role in forming the specialized bus ribbons required for connecting half-cut solar cells. The high cutting accuracy and consistent forming angles ensure optimal electrical connectivity and reduced resistance losses in half-cell configurations.
Double Junction Box Applications
For modules featuring double junction box designs, the machine provides the precise bus bar formations needed for reliable electrical connections. The adjustable forming specifications (short side: 20-100mm, long side: 100-450mm) accommodate various junction box configurations and module layouts.
Compatible Production Lines
- PERC module production lines
- TOPCon module assembly systems
- IBC and ABC module manufacturing
- HPBC technology implementation
- Shingled module production
- Flexible and thin-film module applications
