Product Introduction

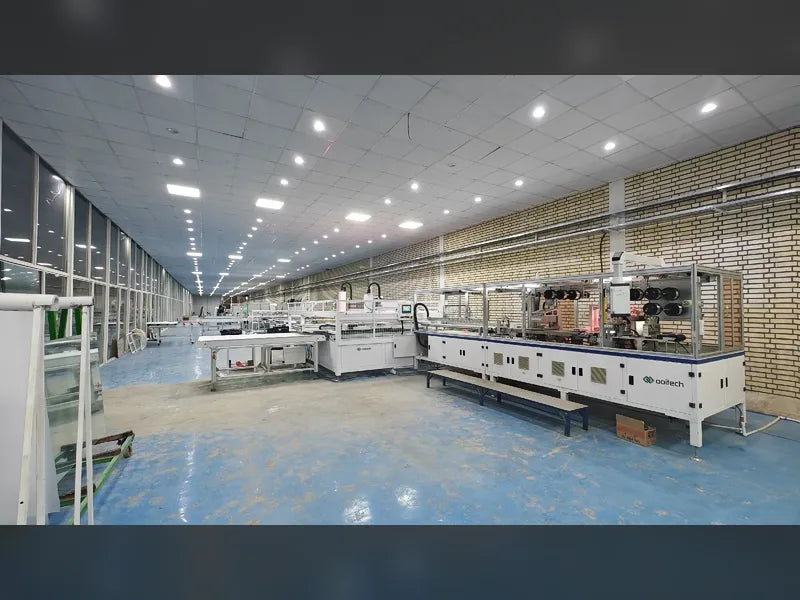

The Ooitech 10MW Semi-Automatic Solar Panel Production Line represents the perfect balance between automation and investment efficiency for growing solar manufacturers. This comprehensive production solution is specifically engineered for mid-sized investors and regional manufacturers who seek to establish or expand their solar module manufacturing capabilities with proven technology and reliable equipment.
Designed with scalability in mind, this production line seamlessly integrates Multi-Busbar (MBB) technology with semi-automatic processes to deliver consistent quality output of 10 megawatts annually. The system supports all mainstream solar cell technologies including PERC, TOPCon, and HJT, accommodating the industry-standard M6 (166mm), M10 (182mm), and M12 (210mm) cell sizes to produce modules ranging from 100W to 720W.
Technical Specifications
Production Capacity & Investment Parameters
| Parameter | Specification |
|---|---|
| Annual Capacity | 10 MW (single shift, expandable to multiple shifts) |
| Module Power Range | 100W – 720W |
| Applicable Cell Types | Mono PERC / TOPCon / HJT |
| Cell Size Compatibility | M6 (166mm), M10 (182mm), M12 (210mm) |
| Process Support | Half-cell / Multi-busbar / Bifacial modules |
| Investment Range | USD 200,000 – 250,000 |
| Factory Space Required | 800–1200 m² production area |
| Warehouse Space | Additional 1–1.5× production area |
| Payback Period | 2–3 years (market dependent) |
| Production Rate | 13 panels/hour (72-cell) / 8 panels/hour (144 half-cell) |
| Workforce Required | 12–15 operators per shift |
Power & Utility Requirements
| Utility Type | Specification |
|---|---|
| Total Power Consumption | >100 kW |
| Air Compressor Flow | 0.6–0.9 m³/min (900 L/min) |
| Air Pressure | 0.8–1.0 MPa (8–10 Kg/cm²) |
| Water Pump | 0.55–1.0 kW, 220V/50–60Hz |
| Water Tank Capacity | 100–120L |
| Recommended Air Tank | Standard connection jets |
Main Equipment Configuration
| Equipment | Model/Specs | Quantity | Function |
|---|---|---|---|
| Automatic Stringer | SS-1500 | 1 | 1,200 cells/hr high-speed soldering |
| Automatic Laminator | OCY-2446/3622 | 1 | 2400×4600mm capacity, Siemens PLC control |
| Laser Cutting Machine | OLS-20A | 1 | Half-cell/third-cell precision cutting |
| Solar Cell Tester | OTCT-A (12BB) | 1 | Cell performance & defect detection |
| Solar Panel Tester | OTMT-A | 1 | Pmax/Isc/Voc/Vm comprehensive testing |
| EL Tester | OEL-S2400 | 1 | Microcrack and defect detection |
| Framing Machine | OTZK-A | 1 | Automated module frame assembly |
| Welding Stations | 3 workplaces | 1 set | String interconnection welding |
| Layup Stations | Standard configuration | 2 | Glass/EVA/cell precision layup |
| EVA/TPT Cutter | Industrial grade | 1 | Encapsulant material cutting |
| Material Carriers | Heavy-duty | Multiple | Glass/module transportation |
Technical Advantages
1. Optimized Production Efficiency
- High Throughput Performance: Achieves 13 panels/hour for standard 72-cell modules and 8 panels/hour for advanced 144 half-cell modules
- Multi-Busbar Technology: Advanced MBB soldering reduces silver consumption while improving module efficiency by 2-3%
- Intelligent Process Control: Siemens PLC-controlled laminator ensures consistent encapsulation quality
2. Superior Technology Compatibility
- Universal Cell Support: Seamlessly processes PERC, TOPCon, HJT, and emerging cell technologies
- Flexible Module Design: Supports half-cell, third-cell, bifacial, and shingled module configurations
- Size Versatility: Accommodates all mainstream cell sizes from M6 to M12 without major retooling
3. Quality Assurance Systems
- Comprehensive Testing: Integrated cell tester, panel tester, and EL imaging ensure 100% quality control
- Defect Detection: Advanced EL testing identifies microcracks and potential failure points before shipping
- Performance Validation: Real-time Pmax, Isc, Voc, and Vm measurements guarantee module specifications
4. Scalable Investment Model
- Modular Expansion: Easily upgradeable to 20MW capacity or full automation
- Quick ROI: Typical payback period of 2-3 years with optimized production
- Low Entry Barrier: USD 200,000-250,000 investment range makes it accessible for medium-scale investors
5. Comprehensive Support Package
- Factory Layout Design: Professional CAD layout planning for optimal workflow
- Installation & Training: On-site installation with comprehensive operator training programs
- 24/7 Technical Support: Round-the-clock remote assistance and troubleshooting
- Spare Parts Supply: Ready inventory of critical components for minimal downtime
Product Applications
Regional Solar Manufacturing
The 10MW production line is ideally suited for regional manufacturers serving local markets. With its moderate investment requirement and flexible production capabilities, it enables businesses to establish a strong presence in emerging solar markets while maintaining competitive production costs.
Contract Manufacturing Services
Companies offering OEM/ODM services can leverage this production line's versatility to serve multiple clients with varying specifications. The ability to quickly switch between different cell types and module configurations makes it perfect for contract manufacturing operations.
Utility-Scale Project Suppliers
For companies supplying utility-scale solar projects, the 10MW capacity provides sufficient volume to meet project deadlines while maintaining quality standards. The line's compatibility with high-efficiency cell technologies ensures competitive module performance for large installations.
Commercial & Industrial Applications
Manufacturers focusing on C&I rooftop installations benefit from the line's ability to produce customized module sizes and power ratings. The semi-automatic nature allows for small-batch production runs tailored to specific project requirements.
Technology Upgrade Pathway
Existing 5MW manufacturers can seamlessly upgrade to this 10MW configuration, doubling their capacity while maintaining familiar operational procedures. The modular design ensures that future expansion to 20MW or full automation remains viable.
