SS-1500B Automatic Solar Cell Welding Machine - High-Speed Tabber Stringer for BC/TOPCON/PERC Cells
SS-1500B automatic solar cell welding machine by Ooitech - High-performance tabber stringer for BC, TOPCON, PERC, and HJT cells with 1000-1200 PCS/H capacity, CCD+robot positioning system, infrared welding technology, and integrated EL inspection for effi
Product Introduction

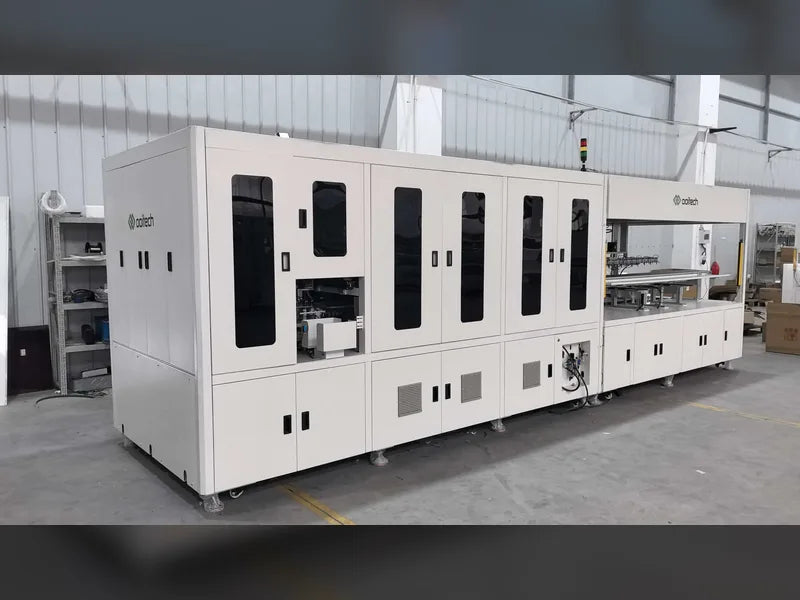

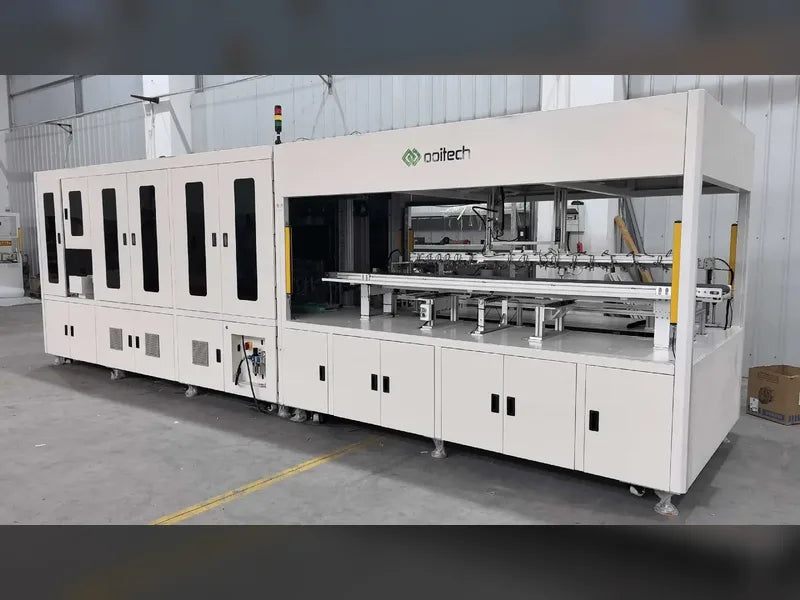

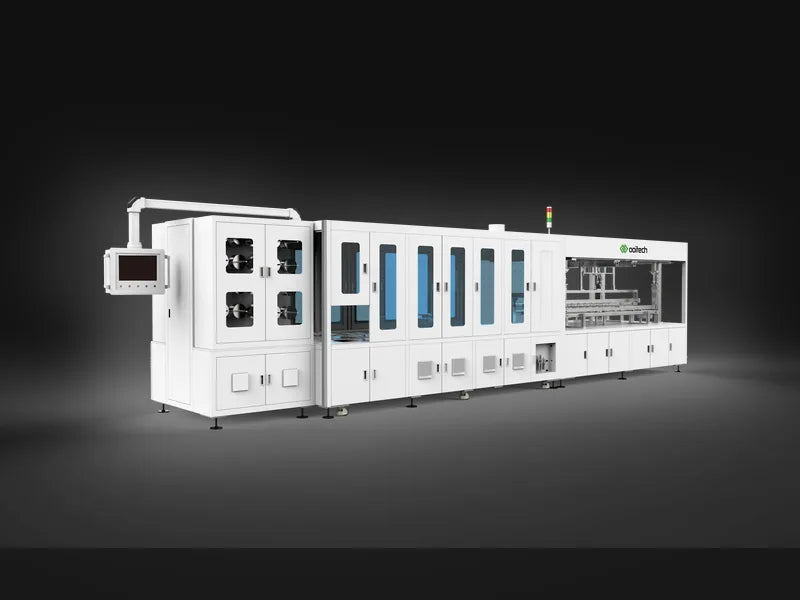

The SS-1500B Automatic Solar Cell Welding Machine is an advanced tabber stringer solution designed specifically for high-efficiency crystalline silicon solar cell welding, including PERC, TOPCON, HJT, and BC cell technologies. Developed by Ooitech, this comprehensive production line equipment delivers exceptional throughput of 1000-1200 PCS/H while maintaining superior welding quality and minimal cell breakage rates.
This fully integrated system combines intelligent automation with precision engineering, featuring automated cell loading systems, CCD vision detection with four-axis robot positioning, multi-zone infrared temperature control, and built-in EL inspection capabilities. The equipment represents a complete turnkey solution for modern solar panel manufacturers seeking to optimize their production efficiency and product quality.
Technical Parameters
Core Specifications
| Parameter | Specification |
|---|---|
| Model | SS-1500B (Without gluing Function) |
| Capacity | BC Cells: 1000 PCS/HTOPCON/PERC Cells: 1200 PCS/H |
| Positioning Accuracy | ±0.15mm |
| Maximum Operating Speed | 1000mm/s (Adjustable) |
| Applicable Cell Size | 166-210 × 30-166mm |
| Maximum String Length | 1800mm |
| Welding Method | Infrared lamp + ribbon welding |
| Ribbon Compatibility | Flat ribbonWidth: 0.35-1.0mmThickness: 0.12-0.25mm |
| Cell Detection | CCD camera detection system |
| Placing Accuracy | ±0.2mm |
| Cell Fragmentation Rate | ≤0.2% (Class A cells) |
| Equipment Failure Rate | ≤3% |
| Loading/Unloading Method | Fully automatic |
| Control System | PLC + Touchscreen + Servo + Module + CCD + Robot |
| HMI Interface | Touch screen with user-friendly interface |
| Error Management | Real-time fault alarm system |
| Equipment Color | Traffic white |
Technical Advantages
Advanced System Components
1. Precision Cell Loading System
- 3 loading boxes supporting 3 or 6 groups simultaneously
- Servo motor with ball screw drive for accurate positioning
- Adjustable box size for cells up to 210mm
- Integrated no-cell alarm function for continuous operation
2. High-Speed Translational Mechanical Arm
- Servo motor driven for precise movement control
- Rail belt module for smooth operation
- High vacuum traceless suction cups preventing cell damage
- Solar cell grabbing success detection function
3. Advanced CCD + Four-Axis Robot System
- SCARA four-axis robot for flexible positioning
- 800W pixel industrial camera for high-resolution detection
- ±0.15mm positioning accuracy
- Missing corner and incorrect placement detection capabilities
4. Intelligent Temperature Control
- Individual temperature zone control with real-time monitoring
- PID temperature control and adjustment system
- Multi-station partition adsorption system
- Dedicated high-precision infrared heating modules
5. Comprehensive Ribbon Handling
- 18 sets of linear mechanisms for precise ribbon placement
- 18 sets of ribbon inspection mechanisms
- Front and rear modules for ribbon pressing
- 19 sets of ribbon grippers for reliable handling
6. Quality Assurance Features
- Integrated EL inspection system with 3 cameras
- Maximum inspection string length of 1800mm
- Automated unloading with clean paper protection for BC cells
- Independent control software with optimization capabilities
Product Applications
Industry Applications
The SS-1500B serves diverse applications across the solar manufacturing industry:
Solar Panel Manufacturing Facilities
- Large-scale production lines from 5MW to 1GW capacity
- High-efficiency cell technologies including BC, TOPCON, PERC, and HJT
- Flexible production for various cell sizes from 166mm to 210mm
Technology Upgrade Projects
- Modernization of traditional PV production lines to MBB technology
- Integration with existing manufacturing systems
- Compatibility with various ribbon types and specifications
Research and Development Centers
- Prototype development for new cell technologies
- Process optimization for emerging solar technologies
- Quality control and testing applications
Global Installation Base
- Successfully deployed in Poland, Hungary, Korea, Mexico, Egypt, Algeria, India, Saudi Arabia, Syria, and Kazakhstan
- Proven performance in diverse manufacturing environments
- Comprehensive support for international operations
